480~1000ST & 480~800SL Adjustable Cable Coilers

The Adjustable Cable Coilers are designed for coiling Cable, Wire, Tubing etc into Large coils/hanks from larger drums/hanks of material.

  1. General Details

    Adjustable Cable Coilers:

    The Adjustable Cable Coilers are designed for coiling Cable, Wire, Tubing etc into Large coils/hanks from larger drums/hanks of material and with use of a Measuring Meter, these can be measured to the specific length ready for further application (Stripping, Crimping etc) or sale to the end user.

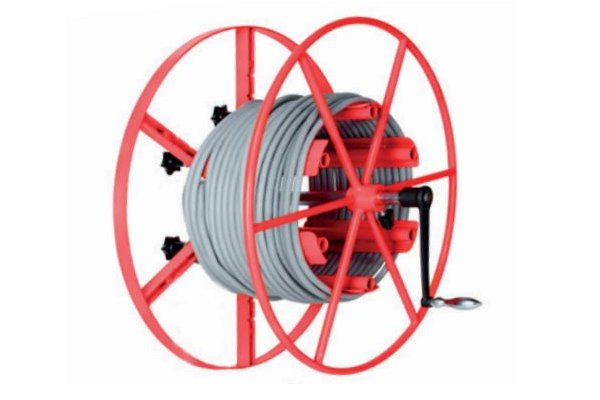

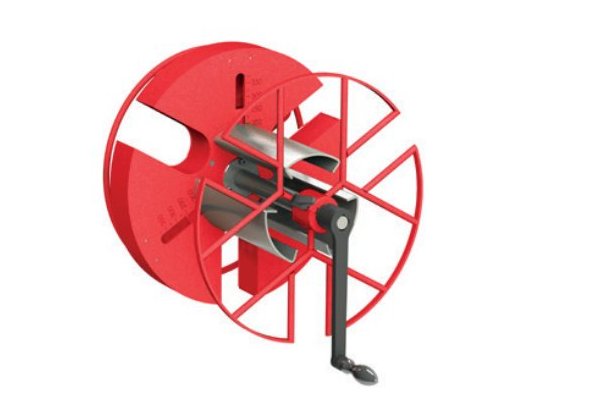

    The cable is fed through the Adjustable Coiler, reeled on via the handle and can be taped or cable tied together before removing the front of the Adjustable Coiler to remove the neatly coiled hank of material with adjustable inner diameters of up to 650mm (25″). Full specifications on each Adjustable Coiler available can be found in the Specifications tab below, all 6 Adjustable Cable Coilers are available mounted to either a bench or floor stand.

  2. Coiler Specifications

    Adjustable Cable Coiler Specifications

    All 6 Adjustable Coilers are available to be mounted to the Bench or Floor
    Model Number:480ST670ST850ST1000ST480SL800SL
    Max Coil OD480mm670mm850mm1000mm480mm800mm
    Coiling Width80-250mm80-250mm80-250mm80-250mm50-250mm50-250mm
    Approx. Adjustable
    Core Size (mm)
    200/250/
    300/350
    250/400/
    500
    250/350/450/
    550/650
    250/350/450/
    550/650
    200-370300-550
    Approx. Adjustable
    Core Size (Inch)
    8/10/
    12/14"
    10/16/20"10/14/18/
    22/26"
    10/14/18/
    22/26"
    8-15"12-22"
    Max Coil Weight50Kgs80Kgs80Kgs80Kgs65Kgs80Kgs
    Coiler Weight25Kgs28Kgs32Kgs38Kgs40Kgs70Kgs
    Stand Dimensions
    (Bench) (LxWxH)
    450 x 330 x 580mmStand Dimensions
    (Floor) (LxWxH)
    450 x 330 x 1065mm
    Bench Stand Weight20KgsFloor Stand Weight26Kgs

    Adjustable Cable Coiler Part Numbers

    Coiler Model NumberCoiler w/Bench StandCoiler w/Floor Stand
    480STMCKM-TIS1000480STMCKM-TIS1000H480ST
    670STMCKM-TIS1000670STMCKM-TIS1000H670ST
    850STMCKM-TIS1000850STMCKM-TIS1000H850ST
    1000STMCKM-TIS10001000STMCKM-TIS1000H1000ST
    480SLMCKM-TIS1000480SLMCKM-TIS1000H480SL
    800SLMCKM-TIS1000800SLMCKM-TIS1000H800SL
