Economic Ringfix/Spulfix Spool & Coil Unwinder
The Economic Ringfix/Spulfix Spool/Coil Unwinder Series are designed to pull off materials such as Cables, Wires, Tubes, Plastic Pipes from Small Coils/Spools.
- General Details
Economic Ringfix/Spulfix Spool & Coil Unwinder
The Economic Ringfix/Spulfix Spool & Coil Unwinder are complete units and do not require any additional stands or add-ons compared to the standard larger series.
The larger series can be found here: Ringfix/Spulfix Coil & Spool Unwinder
The Ringfix/Spulfix Coil/Spool Unwinder Series are designed to pull off materials such as Cables, Wires, Tubes, Plastic Pipes etc from Coils/Spools. This range of products come supplied with an Adjustable Brake Mechanism to avoid an uncontrolled material flow. Coils and Spools rest with their dead weight centrally tensioned on the winding plates.
Features:
• Twist free unwinding of the material
• Adjustable brake mechanism at the base frame to avoid an uncontrolled material flow
• Easy assembly and removal of the coils and spools
• Continuous and central tension of the coils - Economic Coil Unwinder
Model No Ringfix 300 Ringfix 450 Photo of Complete Unit Coil OD Max 290mm Max 440mm Centering Pin Height 110mm 110mm Core Adjusting Range 90-190mm 150-250mm Max Coil Weight 10Kgs 12Kgs Unit Weight 2.5Kgs 4.5Kgs Part Number MCKM-RING300 MCKM-RING450 - Economic Spool Unwinder

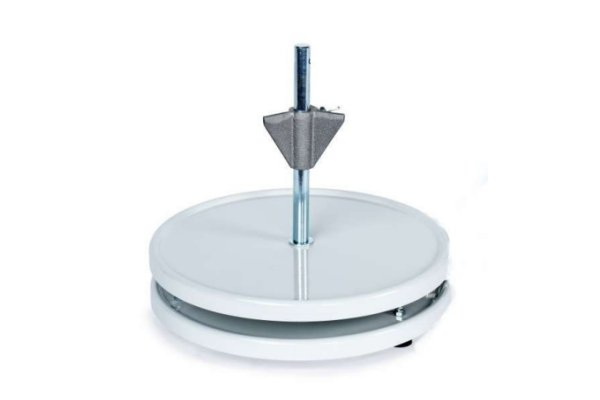

Model No Spulfix 300 Spulfix 450 Photo of Complete Unit Max Spool OD 290mm 440mm Max Spool Height 150mm 150mm Centering Cone for Bore OD 25-80mm 25-80mm Core Bolt Dimensions 16mm OD x 200mm Long Max Spool Weight 10Kgs 12Kgs Unit Weight 2.5Kgs 4.5Kgs Part Number MCKM-SPUL300 MCKM-SPUL450
