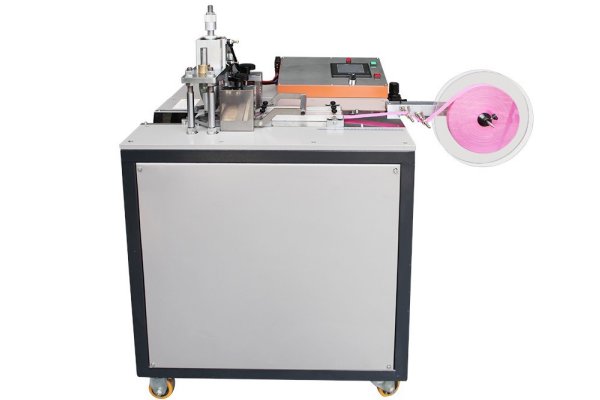

KS-C330 Ultrasonic Cut to Length Machine

The KS-C330 Ultrasonic Cut to Length Machine is capable of processing a wide variety of materials up to 100mm wide and lengths up to 100m.

  1. General Details

    KS-C330 Ultrasonic Cut to Length Machine:

    Introducing the Brand New KS-C330 Ultrasonic Cutting Machine. This New Cut to Length Machine is capable of processing a wide variety of materials up to 100mm wide and lengths up to 100m. This Ultrasonic Cut to Length Machine is especially designed for cutting webbing neatly without fraying. By rotating the Cutting Head you are able to cut the material in a variety of angles, all parameters can be set through the colour touch screen and this machine offers excellent price to performance ratio.

    Materials this machine can process:
    Webbing Belt
    Hook & Loop Tape (Velcro)
    Shoe Strings
    Zipper
    Safety Belts

  2. Technical Data

    KS-C330 Ultrasonic Cut to Length Machine Technical Data:
    Applications/Materials: Webbing Belt, Hook & Loop Tape (Velcro), Shoe Strings, Zipper, Safety Belt & more
    Max Cutting Width: 100mm
    Cutting Lengths: 0-99999mm
    Cutting Speed/Production: up to 5000pcs/hour
    Frequency: 15000Hz
    Max Sonic Wave: 1500W
    Required Air Pressure: 0.3-0.5Mpa
    Power Supply: 220V/50Hz, 110V/60Hz
    Power Rating: 1500W
    Net Weight: 200Kgs
    Dimensions: 800 x 600 x 1400mm

    Product Order Code:
    MCKS-C330 – KS-C330 Ultrasonic Cut to Length Machine
