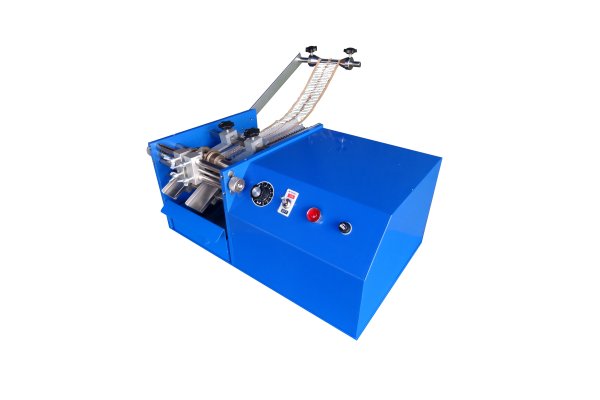

KS-F110 Motorised Taped Axial Lead Former/Cutter
The KS-F110 is an extremely low priced motor driven Axial Components Lead Former and Cutting Machine.
- General Details
KS-F110 Motorised Taped Axial Components Lead Former/Cutter:
The KS-F110 is an extremely low priced motor driven Axial Components Lead Former and Cutting Machine. This unit offers the very best balance of economy, quality, very compact and solid design to easily form and cut taped axial components.
It is possible with the KS-F110 Axial Component Former & Cutter to process up to 60,000 pieces per hour on this efficient system and it has the advantage of easy maintenance and very simple adjustment and operation. This standard model is suitable for components with a lead diameter of 0.35-1mm.
- Specifications (F110U)
KS-F110U Specifications A = 6-40mm
B = 3.6-15mm C = 1.2mm D = 1.5-8mm W = 0.35-1mm Product Order Code: MCKS-F110U - Specifications (F110F)
KS-F110F Specifications A = 4-15mm
B = 1-15mm C = 3mm D = 1.5-8mm W = 0.35-1mm H = 25mm P = 3-13.5mm Product Order Code: MCKS-F110F - Technical Data
KS-F110 Axial Lead Cutter & Bending Machine Technical Data:
Production: 40,000-60,000pcs per hour
Voltage: 220V/50Hz
Weight: 20Kgs
Dimensions: 400 x 250 x 190mm
