KS-T103 Series of Automatic Cut, Strip, Crimp, Sealing & Tin Soldering Machines
The KS-T103 Series are multi-functional machines which offer Automatic Cutting, Stripping, Crimping, Tin Soldering, Waterproof Sealing or Heat Shrink Tube Insertion.
- General Details
KS-T103 Series of Automatic Cut, Strip, Crimp, Sealing & Tin Soldering Machines:
Introducing the Brand New KS-T103 Series of Automatic Cutting, Stripping, Crimping, Sealing & Tin Soldering Machines. This new series are multi-functional machines which offer: Automatic Cutting, Stripping, Crimping, Tin Soldering, Waterproof Sealing or Heat Shrink Tube Insertion. Various models are available with different processing functions.

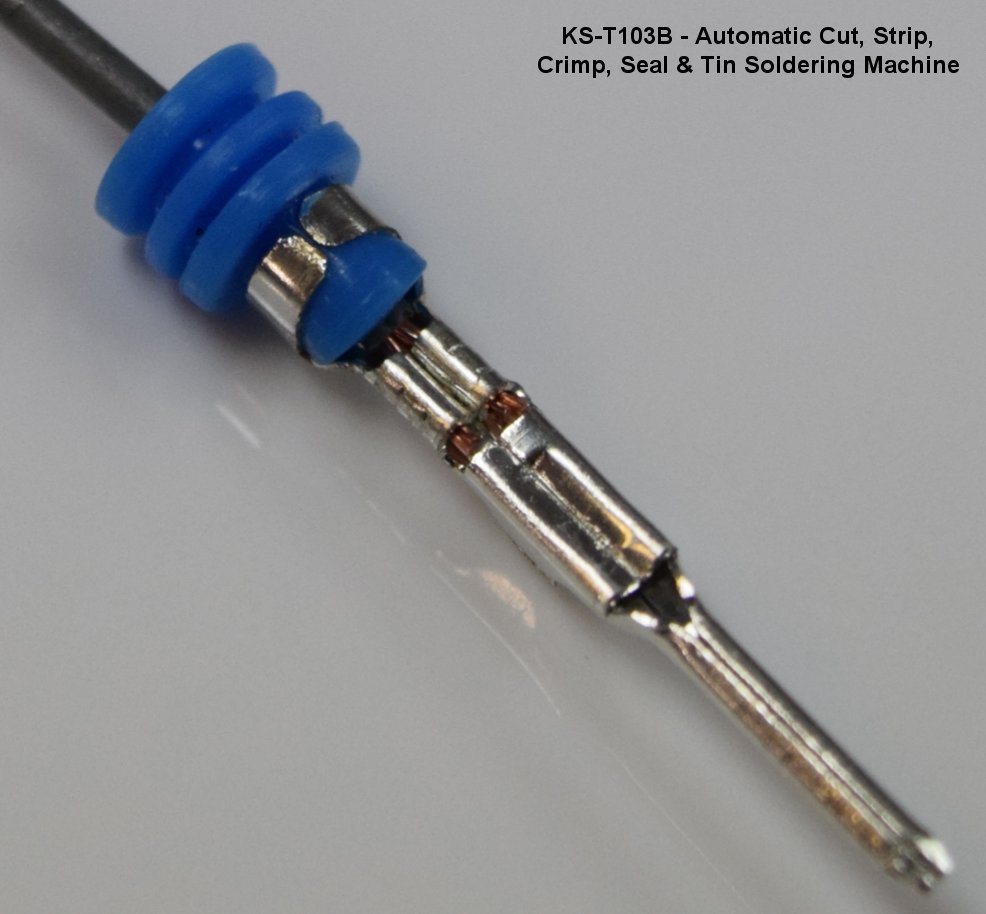

KS-T103B Automatic Cut, Strip, Crimp, Seal & Tin Soldering Machine Sample Photo:
- Specifications
Model Number: KS-T103A KS-T103B KS-T103C Functions: Cutting & Stripping
Twisting & Tinning
Terminal CrimpingCutting & Stripping
Twisting & Tinning
Waterproof Sealing
Terminal CrimpingCutting & Stripping
Twisting & Tinning
Terminal Crimping
Shrink Tube InsertingWire Size Range: 0.05-4mm²
(11-30 AWG)0.05-4mm²
(11-30 AWG)0.05-4mm²
(11-30 AWG)Stripping Length: Leading End: 10mm Max
Trailing End : 14mm MaxLeading End: 10mm Max
Trailing End : 14mm MaxLeading End: 10mm Max
Trailing End : 14mm MaxCutting Length: 45-9999mm 45-9999mm 45-9999mm Length Accuracy: +/- 0.002mm x Length +/- 0.002mm x Length +/- 0.002mm x Length Available Terminals: Side Feed Terminals
End Feed TerminalsSide Feed Terminals
End Feed TerminalsSide Feed Terminals
End Feed TerminalsCrimping Force: 2.0 Ton 2.0 Ton 2.0 Ton Crimping Stroke: 30mm or 40mm 30mm or 40mm 30mm or 40mm Required Air Pressure: 0.5-0.8Mpa 0.5-0.8Mpa 0.5-0.8Mpa Power Supply: 220V/50Hz
(110V/60Hz on request)220V/50Hz
(110V/60Hz on request)220V/50Hz
(110V/60Hz on request)Product Order Code: MCKS-T103A MCKS-T103B MCKS-T103C
