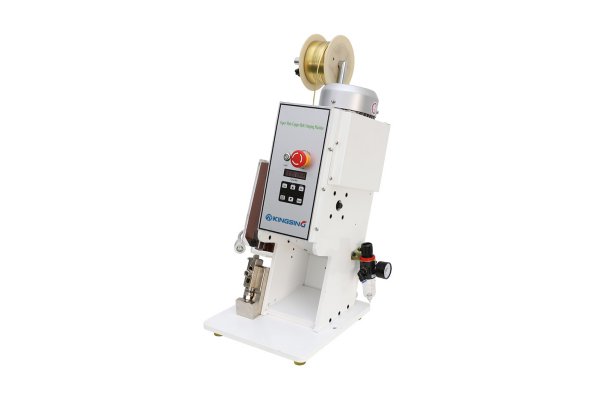

KS-T922 Pneumatic Copper Tape Splicing Machine

The KS-T922 Pneumatic Splicing Machine provides an advanced method for producing low cost, high reliability connections.

Category:
  1. General Details

    KS-T922 Pneumatic Copper Tape Splicing Machine:

    Introducing the new KS-T922 Pneumatic Copper Tape Splicing Machine. This splicing machine provides an advanced method for producing low cost, high reliability connections. The KS-T922 Wire Splicing Machine is able to cut, form and crimp the copper tape in one motion with no wasted material.

    Application: Connecting Neon and Resistor, Crimping Wire Harness, Splicing Slide Switch and Wire, Crimping High Temperature Heating Material and Splicing Thermo-sensitive Components.

  2. Technical Data

    KS-T922 Pneumatic Copper Tape Splicing Machine Technical Data:
    Crimping Force: 15KN
    Output: 250pcs/min
    Power Rating: 0.55KW
    Voltage: AC220V/50Hz (110V Available on request)
    Stroke: 23mm
    Required Air Pressure: 0.5-0.7Mpa (5-7 Bar)
    Suitable Copper Tape: 2/4/6mm
    Feed Type: Pneumatic
    Dimensions: 300 x 350 x 580mm

    Product Order Code:
    MCKS-T922 – KS-T922 Pneumatic Copper Tape Splicing machine
