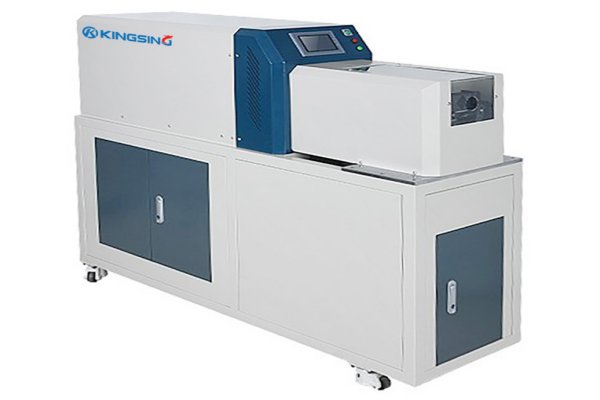

KS-W666 Rotary Cable Stripping Machine
The maximum cable Outer Diameter the KS-W666 Floor Standing Rotary Cable Stripper can process is 34mm with stripping lengths up to 300mm.
- General Details
KS-W666 Semi-Automatic Rotary Cable Stripping Machine:
The KS-W666 Floor Standing Rotary Cable Stripping Machine is capable of processing various cables such as Automotive Cables, Medical Cables, High Temperature Wires, High Voltage Wires and more. This Cable Stripping Machine uses 4 pieces of high precision tungsten steel blades which rotate and strip the cables.
The maximum cable Outer Diameter the KS-W666 Floor Standing Rotary Cable Stripper can process is 34mm with stripping lengths up to 300mm. With a colour touch screen operation, the parameter settings can be easily programmed and stored for future use, 99 different stripping programs can be stored on this machine with up to 9 different stripping layers for each cable program.
- Technical Data
KS-W666 Semi-Automatic Rotary Cable Stripping Machine Technical Data:
Cable Size: 5-34mm OD
Max Stripping Length: 300mm
Accuracy: +/- 0.01mm
Max Stripping Layers: 9 Layers
Production Efficiency: 300-500pcs/hour (depending on stripping lengths and layers)
Program Memory: 99 Programs
Power: 800W
Voltage: AC220/110V, 50/60Hz
Net Weight: 225Kgs
Dimensions: 1500 x 440 x 1200mm
Product Order Code: MCKS-W666 – KS-W666 Semi-Automatic Rotary Cable Stripping Machine
