MESSROL 450 Coil, Measure & Spool Rewinding Device
The MESSROL 450 Coil, Measure and Spool Rewinding Device is suitable for winding cables, wires, tubing etc. from Coils/Spools or Larger Drums
- General Details

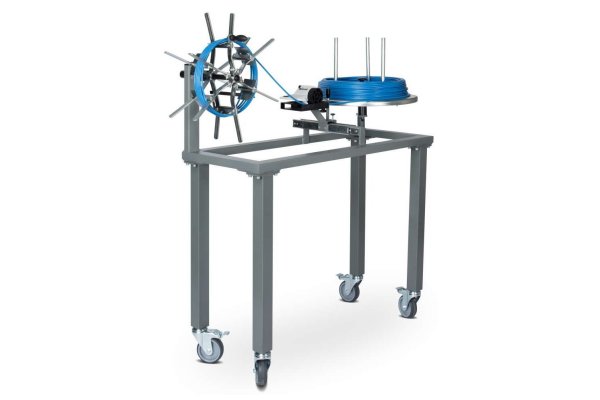

MESSROL 450 Coil, Measure and Spool Rewinding Device
The MESSROL 450 Coil, Measure and Spool Rewinding Device is suitable for winding cables, wires, tubing etc. from Coils/Spools or Larger Drums (using the inlet roller) into smaller Coils or onto smaller Spools while measuring the material to the required lengths.
Features:
• Flexible modular system
• Easy winding & measuring
• Adjustable brake mechanism at the Base Frame to avoid uncontrolled material feed
• Easy assembly and removal of the coils/spools
• Continuous and central tension of the coilsMESSROL 450 Standard Complete Device Part Numbers Base Frame/Desk Frame KM85100436 4Pcs Stand with Rollers KM85100437 Ringfix 480 Coil Unwinding Plate MCKM-RING480 Rapid 450SP Collapsible Cable Coiler KM85100090 Messboi 10 Measuring Device MCKM-MES10 Technical Data Dimensions (LxWxH) 1000 x 400 x 1200mm Weight 48Kgs Complete Device Part Number

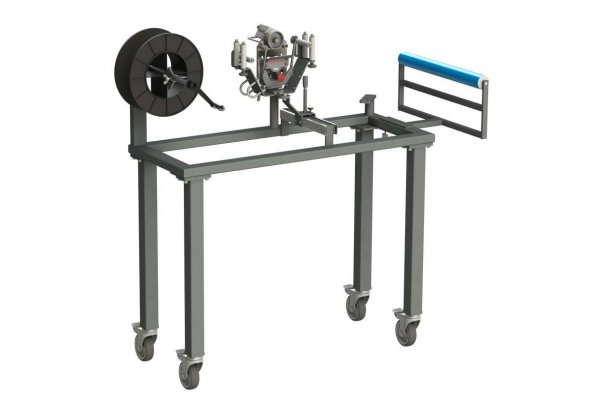

(Includes all parts above)MCKM-MESSROL450-S The MESSROL 450 complete device above can also be customised to suit your requirements. Please see the tabs below for additional Coil/Spool Winding/Unwinding and Measuring Device Options along with an optional Inlet Roller for Unwinding from a larger cable drum.
- MESSROL 450 Frame Options/Specifications
- MESSROL 450 Winding Options/Specifications
- MESSROL 450 Unwinding Options/Specifications
- MESSROL 450 Measuring Device Options/Specifications
