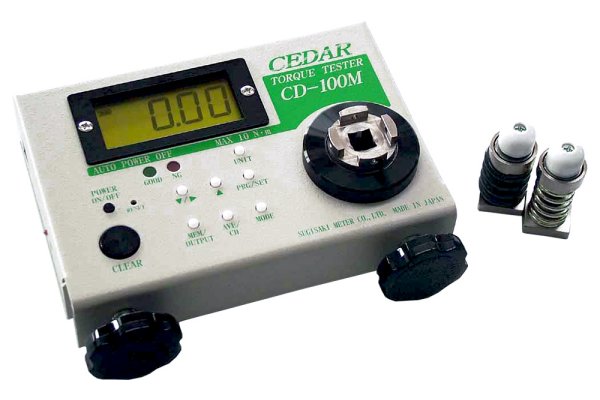

CD-10M/100M Digital Torque Meter
The CD-10/100M Digital Torque Meters are compact and easy to use for measuring the torque settings of Electric Screwdrivers, Torque Drivers and Torque Wrenches up to 1Nm (CD-10M) or 10Nm (CD-100M)
- General Details
CD-10M/100M Digital Torque Meters:
The CD-10/100M Digital Torque Meters are compact and easy to use for measuring the torque settings of Electric Screwdrivers, Torque Drivers and Torque Wrenches up to 1Nm (CD-10M) or 10Nm (CD-100M). The Digital Torque Meter units have a 3 way selectable switch that will measure in Kgf-cm/Nm/Lbf-in. It will also measure peak force exerted by the driver or will show a track measure.
- Specifications
Model Number: CD-10M CD-100M Measuring Range: Nm: 0.01-1.00
Kgf-Cm: 0.10-10.0
Lbf-In: 0.10-9.00Nm: 0.10-10.0
Kgf-Cm: 1.0-100.0
Lbf-In: 1.0-90.0Torque Accuracy: +/- 0.5% +/- 0.5% Measurement Modes: P-P: Peak to Peak
T-R: Track
P-D: Peak-Down
C: (Real Time Output)P-P: Peak to Peak
T-R: Track
P-D: Peak-Down
C: (Real Time Output)Measurement Direction: Clockwise
Counter ClockwiseClockwise
Counter ClockwiseBattery Pack: Ni-cd Battery 1.2V x 5 Cells (700mAh) Ni-cd Battery 1.2V x 5 Cells (700mAh) Battery Life: Rechargeable 300 Times Rechargeable 300 Times Auto Power Off: Power will shut off after 10 minutes of inactivity Charging Time: Approx 3 Hours Approx 3 Hours Continuous Use: Approx 12 Hours
at full chargeApprox 12 Hours
at full chargeProduct Order Code: MCCD-10M MCCD-100M - Purchase Product
