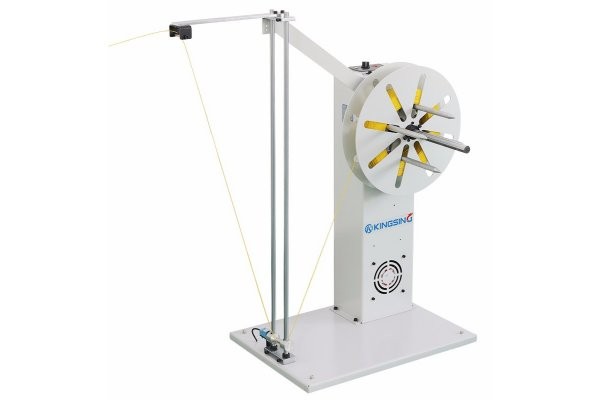

KS-W226 Universal Single Spool Cable Prefeeding Machine
The KS-W226 Motorised Cable/Wire Feeding Machine is suitable for cable drums weighing up to 20Kgs and cable diameters up to 4mm.
- General Details
KS-W226 Universal Single Spool Cable Prefeeding Machine:
Introducing the brand new KS-W226 Universal Single Spool Cable Prefeeding Machine. Fast feeding rates can often cause the cables to become twisted or knotted, this wire prefeeding machine solves this problem with smooth acceleration and braking of the rotary plate. The cable is led under constant tension to the wire processing machine for trouble free feeding. Due to an electronic control system, which is activated with a pendulum arm, the feed rate automatically adjusts to the requirement from the wire processing machine.
- Technical Data
KS-W226 Universal Single Spool Cable Prefeeding Machine Technical Data:
Wire Size: 0.5-4mm O.D.
Ribbon Cable: Max Width 25mm
Wire Spool Diameter: Max 400mm
Wire Spool Width: Max 250mm
Wire Spool Weight 20Kgs
Storage Capacity: 1m
Power Supply: 220V, 50/60Hz
Net Weight: 30Kgs
Dimensions: 900 x 500 x 930mmProduct Order Code:
MCKS-W226 – KS-W226 Universal Single Spool Cable Prefeeding Machine
