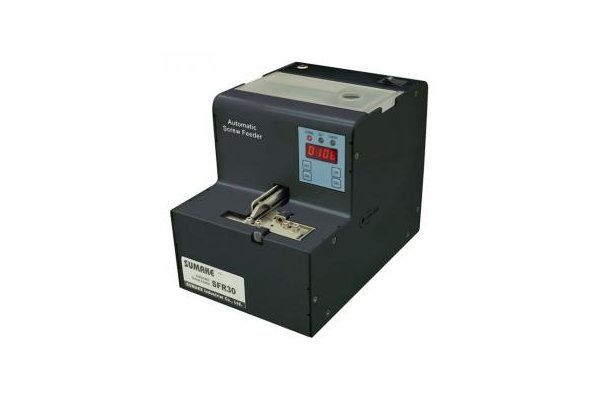

SFR30 Automatic Screw Feeder

Sumake SFR30 Automatic Screw Feeder for automatic pick up of screws with a size range of M0.8~M3.0 screw head diameter 1.2~9.5mm with a length of 1.0~15mm.

  1. General Details

    SFR30 Automatic Screw Feeder:

    Introducing the new SFR30 Automatic Screw Feeder for automatic pick up of screws with a size range of M0.8~M3.0 screw head diameter 1.2~9.5mm with a length of 1.0~15mm. The digital display allows for easy and quick setting. The SFR30 Screw Feeder is able to deliver up to 50 pieces per minute.

    Features:
    Japanese brushless motor for increased durability.
    Adjustable railway.
    Horizontal linear feeding with an aluminium extruded rail which enables screws to be carried on a horizontal track for ultra smooth feeding.
    Smart PCB with alert warning.
    Signal output whilst the screw is ready in position.

  2. Technical Data

    SFR30 Screw Feeding Machine Technical Data:
    Model No: SFR30
    Applicable Screw Diameter (mm): M0.8(0.6)~M3.0
    Screw Head Diameter (mm): 1.2-9.5
    Horizontal Delivery Speed: 46~50pcs/min (1.2~1.3secs)
    Scooping Chamber Capacity: 200~220 c.c
    Switching Adaptor: DC12V Switching Adaptor
    Voltage: AC100~240V
    Feeding: Chamber Blanking
    Dimensions: 182 x 124 x 146mm
    Weight: 3.0Kgs

    Product Order Code:
    SU-SFR30 – SFR30 Automatic Screw Feeding Machine
