TROMCAR Heavy Duty Cable Drum Transporter/Unwinder
The TROMCAR Heavy Duty Cable Drum Transportation and Unwinding systems are used for transportation and unwinding of large cable drums up to 1000Kgs in weight.
- General Details
TROMCAR Heavy Duty Cable Drum Transporter

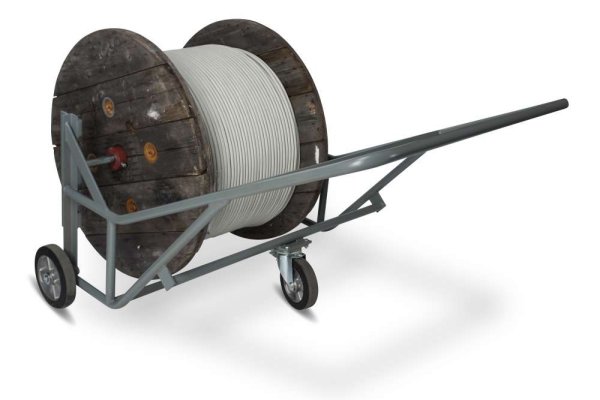

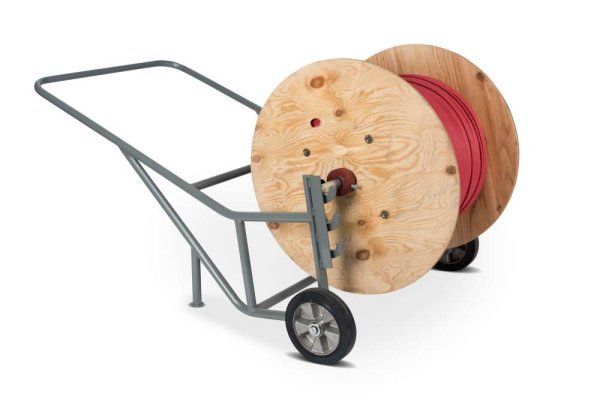

The TROMCAR 1000/1250 Heavy Duty Cable Drum Transporter and Unwinding systems are used for the in-house transport and unwinding of large cable drums up to 1000Kgs in weight.
Features:
• Flexible usage
• Suitable for Large Heavy Duty Cable Drums
• Large Heavy Duty Rollers
• All steel welded construction
• Optional measuring device (MESSBOI 25 Measuring Device with Roller Cage & Mounting Device) - TROMCAR Heavy Duty Cable Drum Transporter Options
Model Number TROMCAR 1000 TROMCAR 1250 Photo
Cable Drum OD 500-1000mm 500-1250mm Drum Axle with Cetering Cones 34mm OD x 840mm Long 34mm OD x 1140mm Long Max Cable Drum Load Capacity 1000Kgs 750Kgs Max Cable Drum Width 710mm 1000mm Dimensions (LxWxH) 1600 x 1040 x 770mm 1600 x 1360 x 830mm Weight 50Kgs 52Kgs Equipment 2 Fixed Rollers
2 Pillars2 Fixed Rollers
1 Steering RollerPart Number MCKM-TROMCAR1000 MCKM-TROMCAR1250
