TROMTRAK 1250 Heavy Duty Cable Drum Unwinder
The TROMTRAK 1250 Heavy Duty Cable Drum Unwinder enables the user to unwind heavy cable drums easily and twist free up to 500Kgs in weight.
- General Details

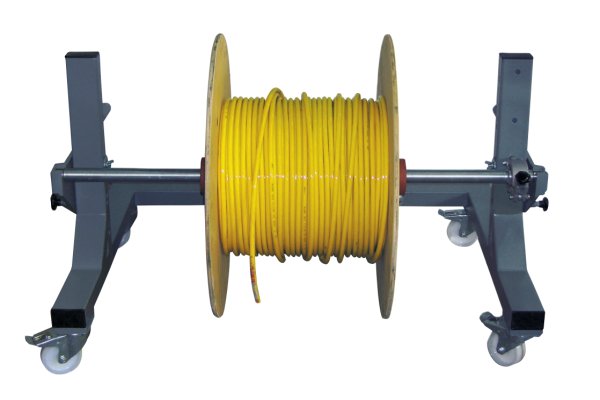

TROMTRAK 1250 Heavy Duty Cable Drum Unwinder
The TROMTRAK 1250 Heavy Duty Cable Drum Unwinder enables the user to unwind heavy cable drums easily and twist free at the place of processing. This heavy duty cable unwinder is suitable for cable drums made from wood, steel, plastic and more. This could also be used on the production line for feeding into an Automatic Cutting or Cut & Strip Machine.
Features:
• Suitable for usage in a mechanical processing line
• Base frame with breakable driving wheels
• Drum axle with adjustable shoe brake
• Double bearing axle
• Stable steel welded construction - TROMTRAK 1250 Cable Drum Unwinder Options
Model
NumberTROMTRAK 1250
with conesTROMTRAK 1250

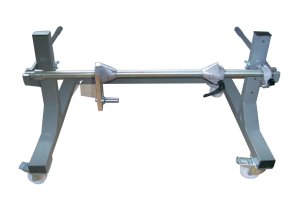

with driving pin 25mm ODTROMTRAK 1250
with driving pin 25mm ODPhoto
Cable Drum OD 630-1250mm 630-1250mm 630-1250mm Drum Axle OD 35mm 35mm 60mm Max Cable Drum Weight 250Kgs 250Kgs 500Kgs Max Cable Drum Width 890mm 810mm 700mm Dimensions (LxBxW)
(without drum)860 x 1300 x 700mm 860 x 1300 x 700mm 860 x 1300 x 700mm Weight 58Kgs 60Kgs 65Kgs Part Number MCKM-TROMTRAK1250 MCKM-TROMTRAK1250-1 MCKM-TROMTRAK1250-2
